We Buy Used Cisco 15454E-E1-120PROA 120 Ohm E1 FMEC
Sell Used Cisco 15454E-E1-120PROA
We will buy your used CISCO 15454E-E1-120PROA We pay for freight when we buy your used CISCO 15454E-E1-120PROA. You get a full Platform. We have hundreds of used Cisco 15454 hardware available to choose from. Call us if you don't see the used Cisco 15454 hardware you need
We have hundreds of used Cisco 15454 hardware available to choose from. Call us if you don't see the used Cisco 15454 hardware you need.
Buy Refurbished Cisco 15454E-E1-120PROA Specifications

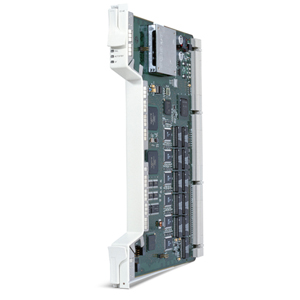

The E1-42 module provides 42 G.703 compliant E1 interfaces in a single-slot footprint for the ONS 15454 SDH. The E1-42 card is capable of receiving 42 independent asynchronous E1 signals and mapping them into VC-12s (Virtual Container) per ITU G.707 for further multiplexing, switching, or transport. The E1-42 card also provides performance monitoring and alarm reporting framing formats per ITU G.826.
Each E1 interface on the E1-42 card operates independently at 2.048 Mbps, with the physical termination of each E1 located at the Front Mount Electrical Connection (FMEC) module in the Electrical Facility Connection Assembly (EFCA) chassis. The E1-120NP FMEC is required when the E1-42 card is configured in unprotected mode. When the E1-42 card is configured in a 1:3 protection group, the E1-120PROA and E1-120PROB FMECs provide a 120-Ohm balanced, termination capability. For 75-Ohm terminations, an external one rack unit high converter (E1-75BB) is available which allows conversion from 120-Ohm to 75-Ohm and vice versa.
The E1-42 card utilizes three card-level light indicator indicators on the card faceplate. The red FAIL light indicator indicates a hardware problem on the E1 module. The bi-color ACT/STBY light indicator indicates the modules' current operational status. When the ACT/STBY light indicator is green, it indicates that it is the working module and is in the active condition. When the ACT/STBY light indicator is amber, it indicates that it is the protection module and is operating in a stand-by condition. The yellow SF indicates a problem receiving incoming data (LOS, LOF, or high BER) on one or more of the E1 ports on the card. The user can query individual ports for further alarm resolution or port conditions via the LCD display located on the fan tray assembly or access the system via Cisco Transport Controller (CTC).
We have this refurbished card available and are also actively buying. Please contact us for more details.
We Sell Refurbished Cisco 15454E-E1-120PROA Hardware
We have most Cisco 15454 optical transport hardware available. We can design a custom solution to fit your needs. We can also ship your used Cisco 15454 hardware anywhere in the nation. Call 1-888-234-4975 for more information.
